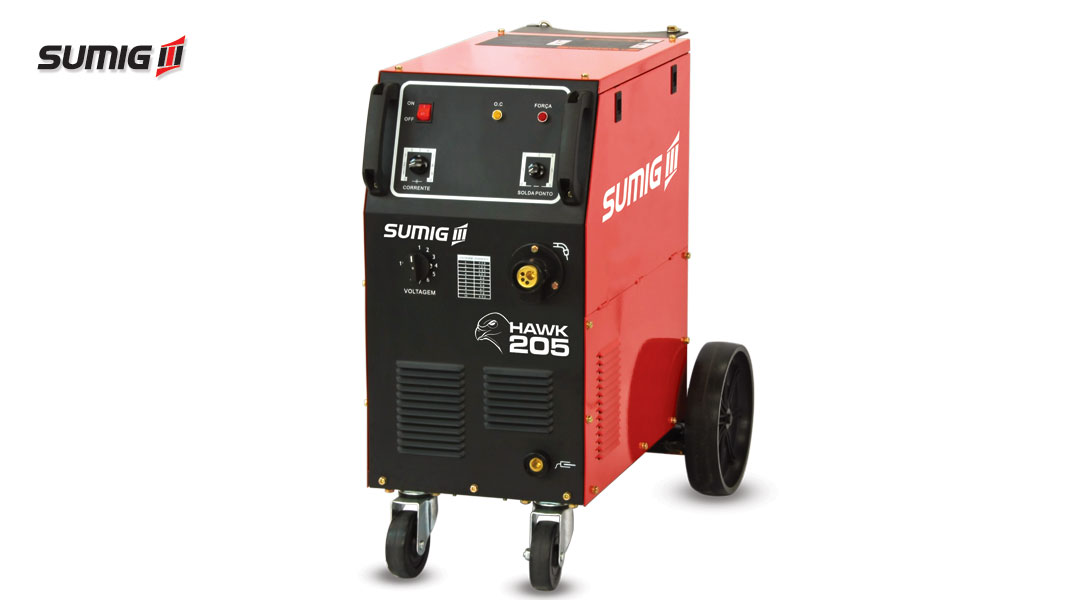

Hawk 205 MIG/MAG Welding Machine
Code: 1920.1007
MIG/MAG Electromechanical Equipment with Internal Wire Feeder for Welding of Carbon and Stainless Steels.
- Duty Cycle: 145A - 60% / 110A - 100%
- Wires: 0.60mm to 0.80mm
- Light services
- Power supply: 220V Single phase
-
Catalog -
Share -
Save as favorite -
Print
Description:
- Single-phase welding equipment focused on the welding of thin sheets, car coating with solid wires from 0.60 to 0.80 mm.
- It has a gearmotor with 02 geared feed rollers.
- Ready for welding with carbon dioxide - pure CO2 and mixtures.
- Wire tip length control - "Burn Back".
- It has a welding timer system (spot welding).
- It has back support to support and fix the gas cylinder.
Highlights:
- Good CO² inductance
- Protective thermostat
- 02 traction rollers
- Spot Welding
- Burn Back
- Light services
- Easy Maintenance
Caracteristicas Tecnicas
| Burn Back | Yes |
| Burn Back Control | Yes |
| Casters for Displacement | Yes |
| Constructive Shape | Electromechanical |
| Degree of Protection (IP) | IP 21 |
| Earth Cable | 16mm2 - 3m - ER 12,8 mm |
| Easy Maintenance | Yes |
| Frequency | 50 / 60 Hz |
| Gauge of the Rollers Including "V' Profile | 0,8 - 1,0 mm |
| Good CO2 Inductance | ✓ |
| Kind of Service | Light |
| Phases | Single-phase |
| Possibility of attaching Torch Cooler | Not recommended |
| Power Supply Voltage | 220V |
| Recommended Wire Diameters (Carbon Steel) | 0,6 until 1,0 mm |
| Regulating Current in MIG / MAG (Amperes) | 35 - 200 A |
| Regulation Positions (Combinations). | 10 |
| Source Dimensions in mm (W x H x D) | 350 x 700 x 710 |
| Source weight | 82 Kg |
| Spot Welding | Yes |
| Spot Welding Resource (Timer) | Yes |
| Support to Cylinders | Yes |
| Thermostat Protection | Yes |
| Traction Rollers | 2 |
| Wire Coils (Weight) | 5 until 15 Kg |
| Work Cycle (Amperage -%) | 145A - 60% / 110A - 100% |
