Welding Machines

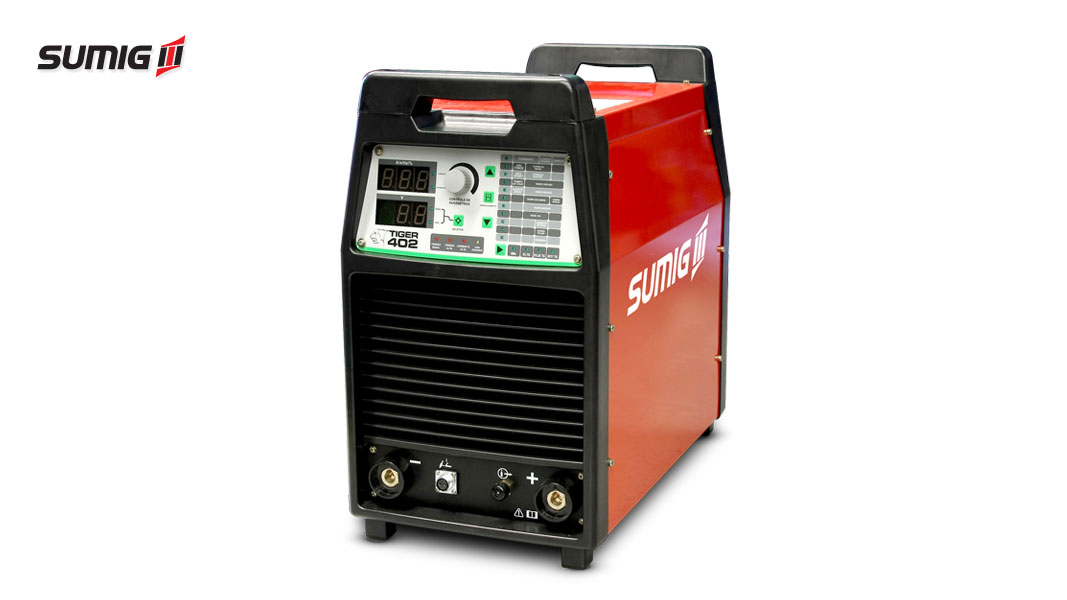

Tiger 402 TIG Welding Machine
Code: 1922.1027
Inverter Source DC TIG in Carbon and Stainless Steel.
- Duty Cycle: 400A - 60%
- Heavy Duty Services
- Power supply: 380V three-phase
-
Catalog -
Share -
Save as favorite -
Print
Description:
- Inverter welding machine;
- Ready for welding with all types of acid or basic electrodes in welding MMA (Coated Electrodes - ø1,6 / 6 mm);
- High frequency arc opening (HF) or LIFT ARC;
- Easy displacement on castors;
- Can be equipped with water cooler;
- Digital panel to select welding parameters;
- Ramp up and down;
- TIG spot welding;
- Pre and post gas flow;
- Pulsed Current;
- 11 memory channels;
- According to IEC 60.974 / 1.
Highlights:
- TIG DC and MMA
- Inverter (energy saving)
- Zero Waste
- Ramp Up / Down
- Pulsed TIG
- Air and Water Cooled Torches
- Heavy Duty Services
Check out the video of this product:
Caracteristicas Tecnicas
| Current | DC |
| Degree of Protection (IP) | |
| Frequency (Hertz) | 50 - 60 Hz |
| Gas Flow | ✓ |
| Inverter | ✓ |
| Kind of Service | Pesado |
| Phases | Trifásica |
| Process | MMA e TIG |
| Pulsed | ✓ |
| Ramp Resource | ✓ |
| Regulating Current (Amperes) | 1 a 400A |
| Source Dimensions in mm (W x H x D) | |
| Source weight | |
| Spot Welding TIG (Spot Welding) | ✓ |
| TIG Torch Type | Secas e Refrigeradas |
| Voltage (Volts) | 380V |
| Work Cycle (Amperage -%) | 400A - 60% / 310A - 100% |
